Vitrocsa
Pivot
Cliffhanger, Joe Adsett Architects
Maximum glass panel size
12m2
Maximum glass panel weight
350kg
Maximum rotation
180°
Frame width
20mm
The Vitrocsa Pivot supports large panels with the world’s slimmest high-strength frame.
Vitrocsa’s Pivot design balances enormous glass panels of up to 12m2 with a slim and highly-engineered 20mm frame. The elegant pivoting motion can be customised to include central or offset axis points, a hold-open mechanism and a slow-close release.
Efficient in both large and tight spaces, the Vitrocsa Pivot maximises the size of all openings. Available in single, double or triple glazing.
Case studies

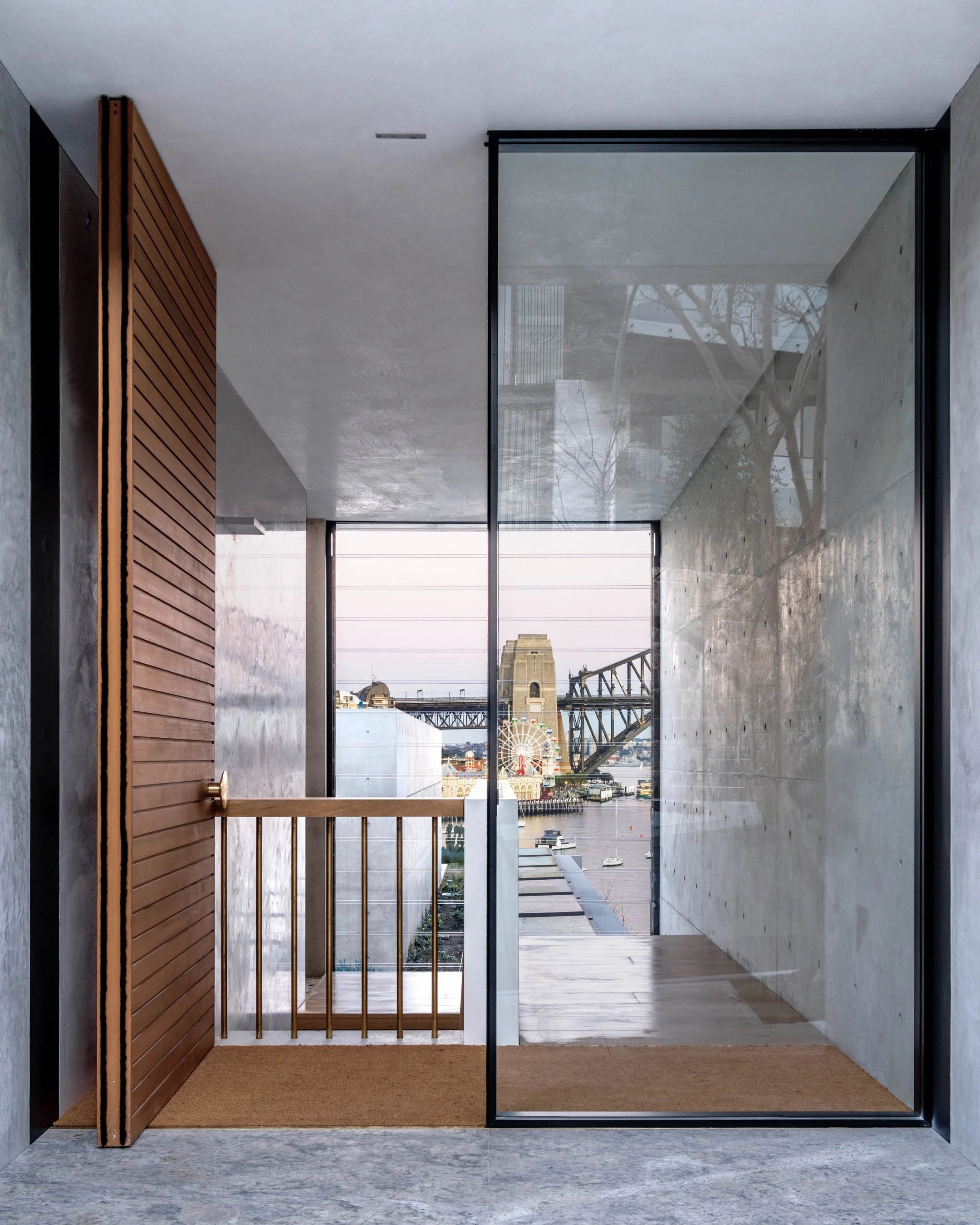

Lavender Bay House, Tobias Partners
Lavender Bay House, Tobias Partners

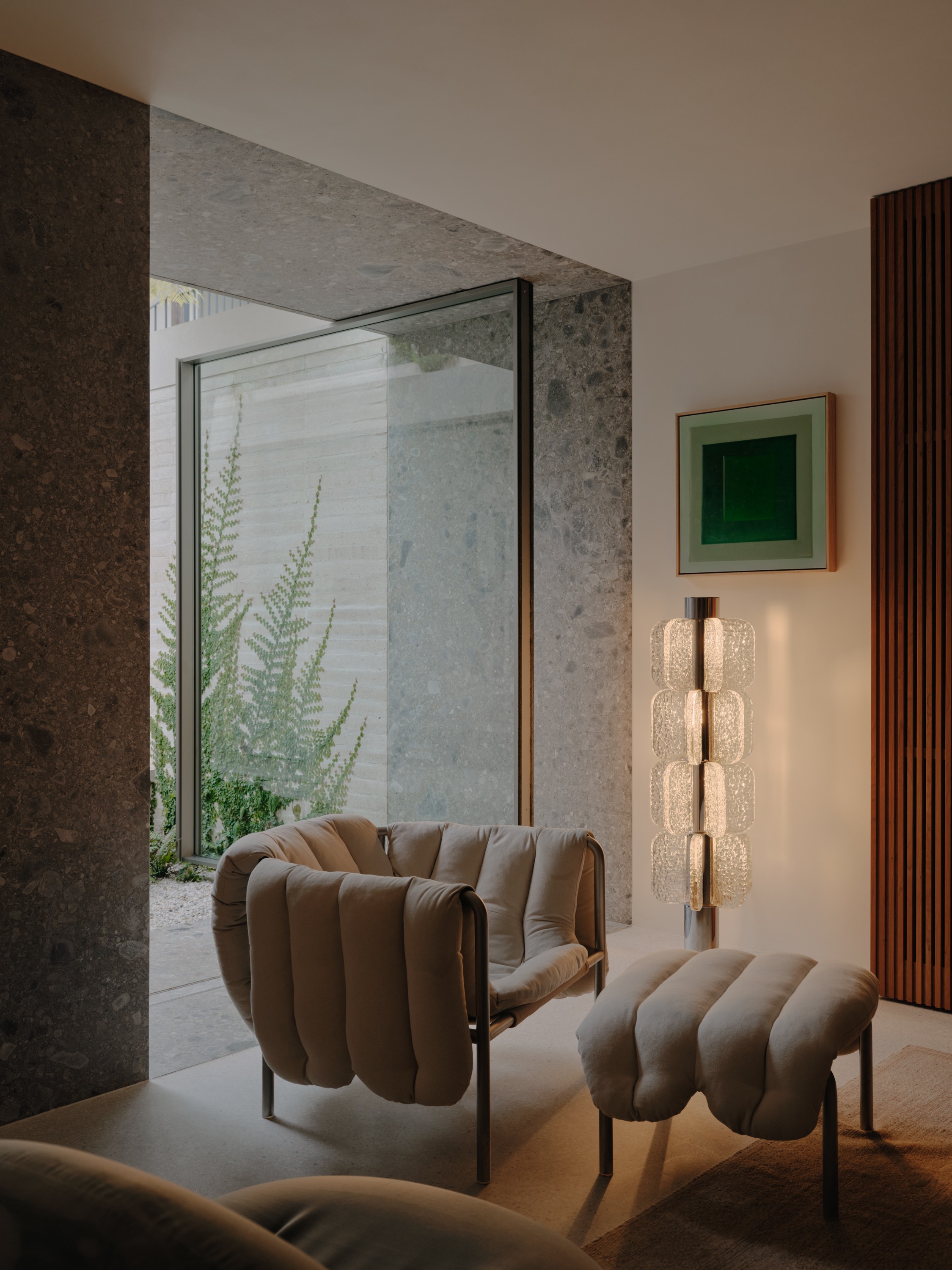

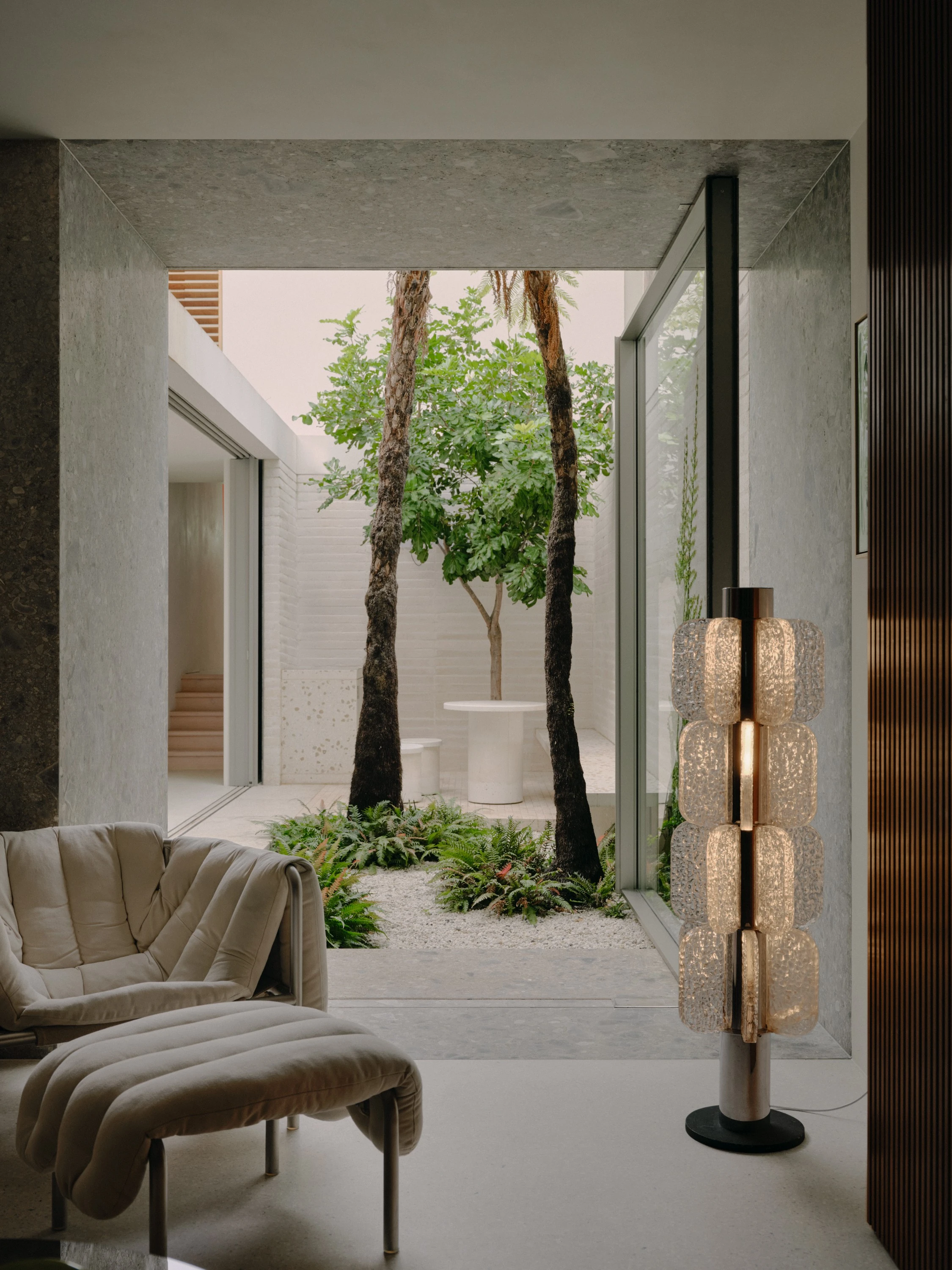

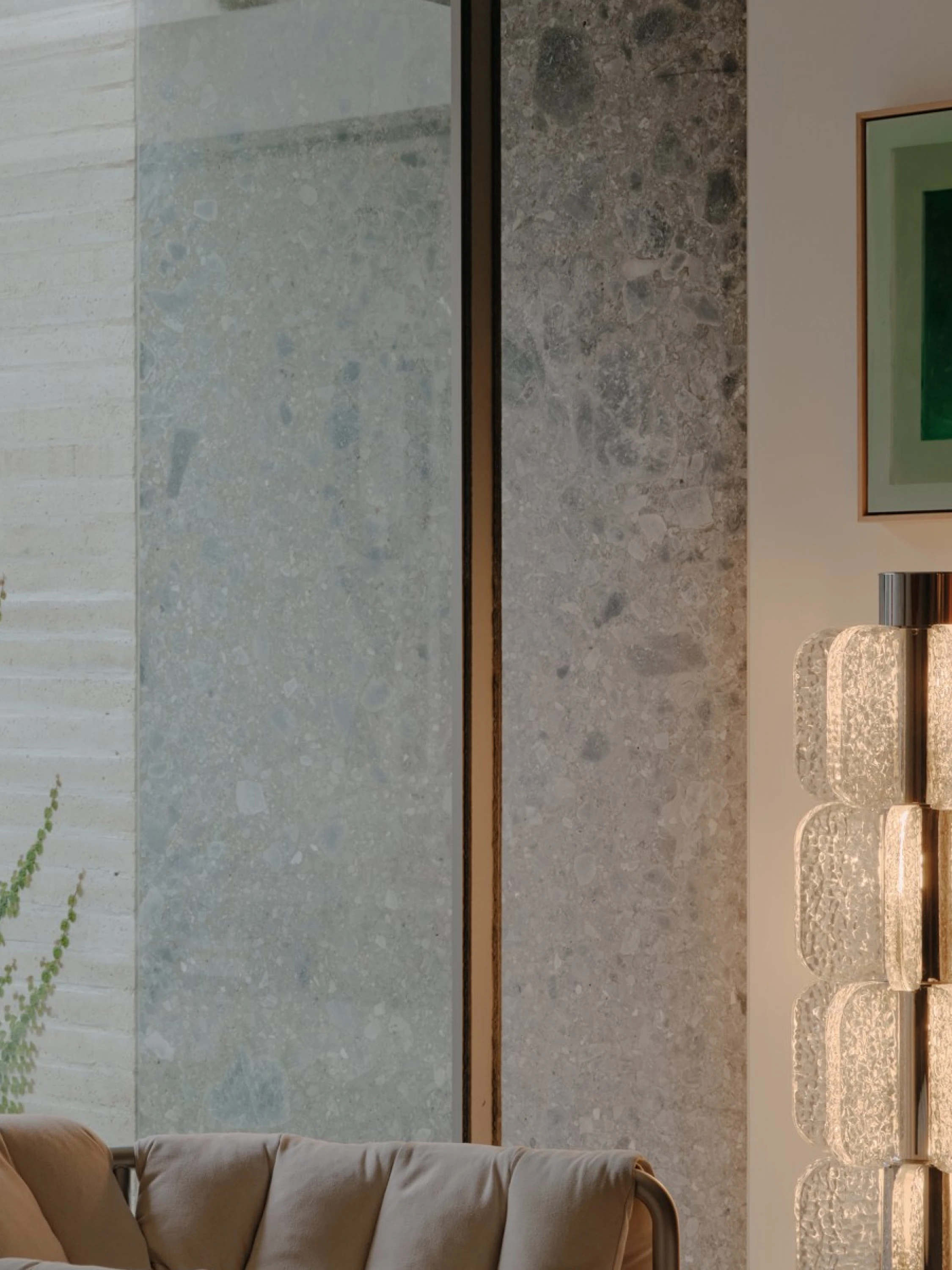

Daddy Cool, Pattern Studio
Daddy Cool, Pattern Studio

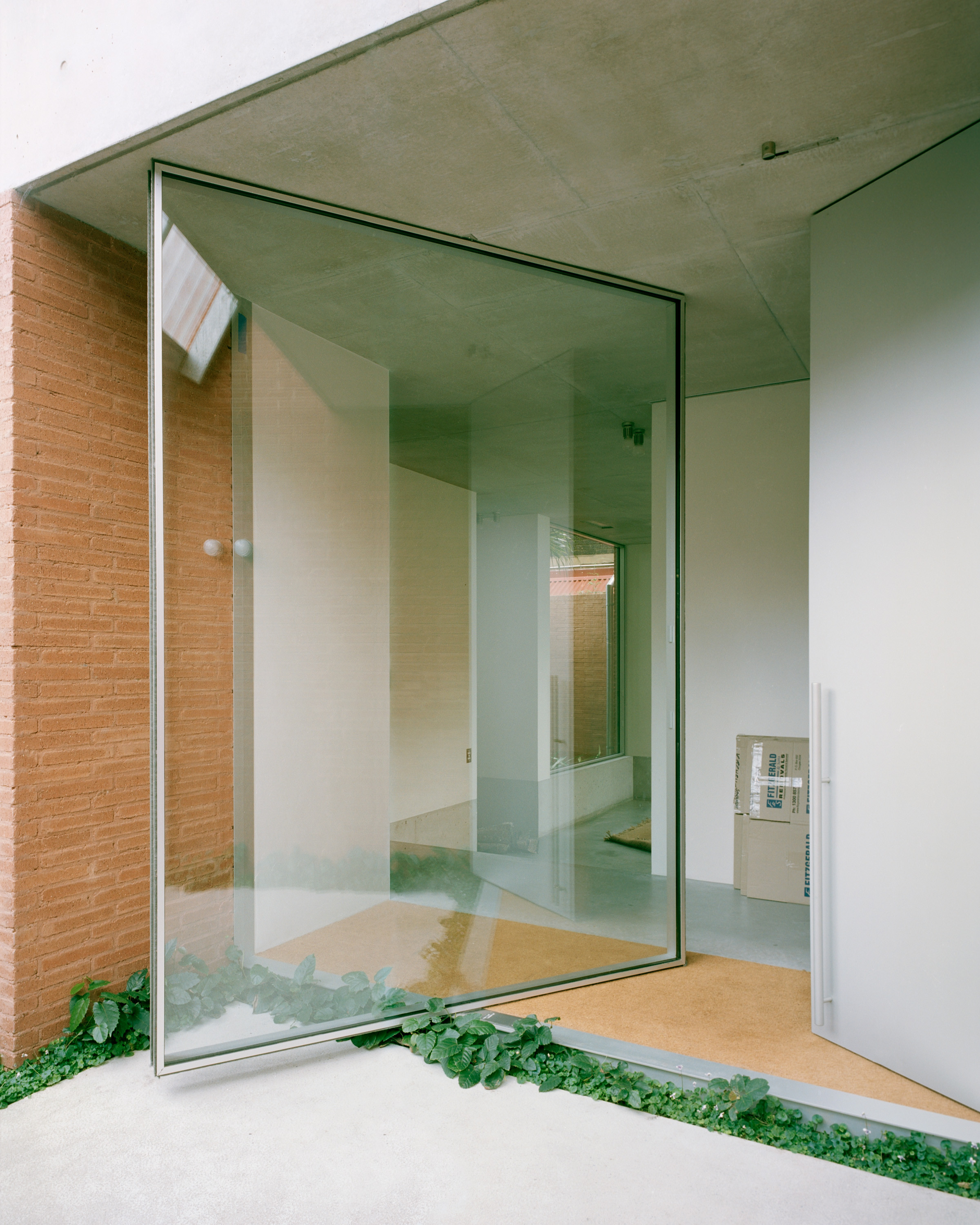

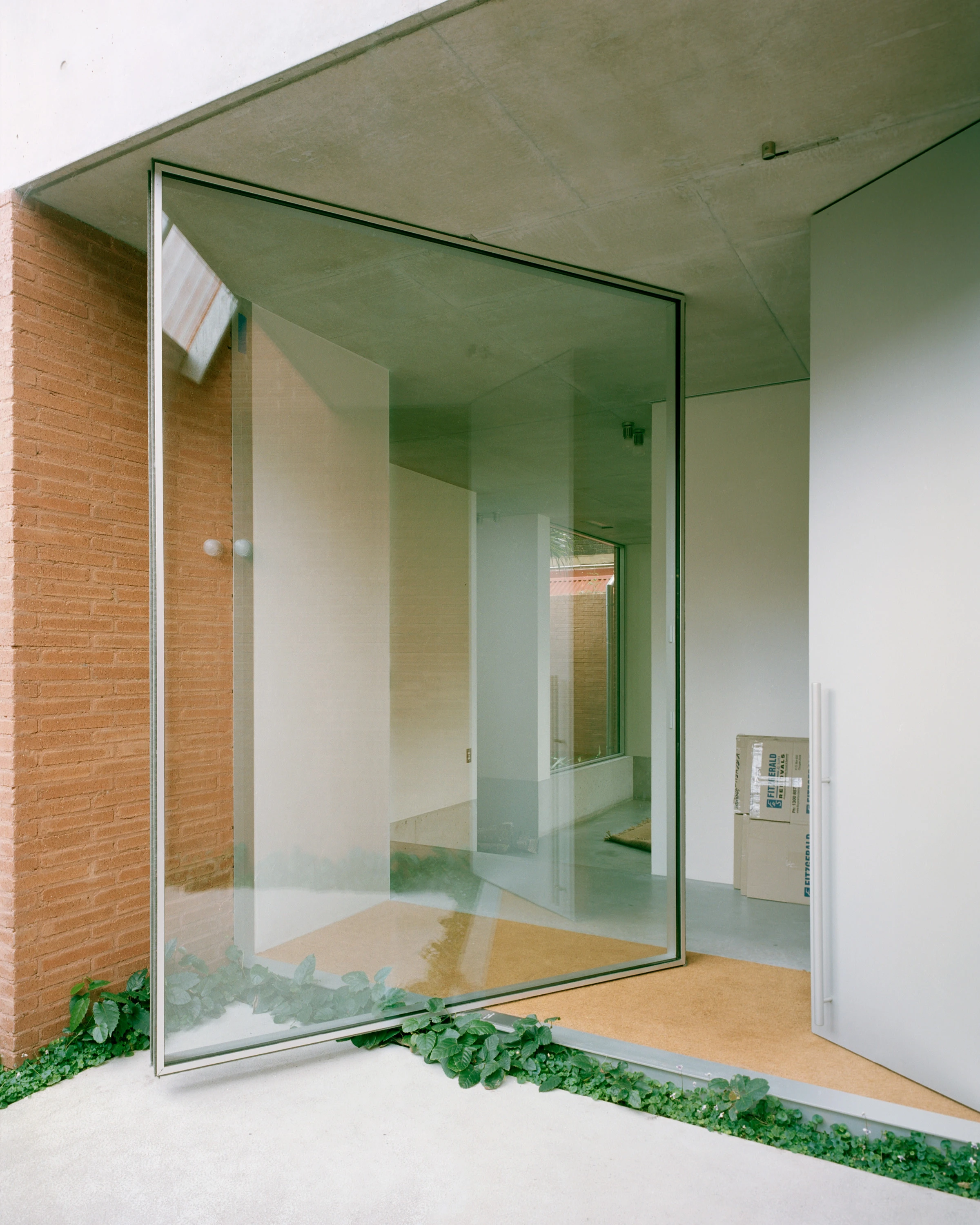

Paddington, Wendy Lewin

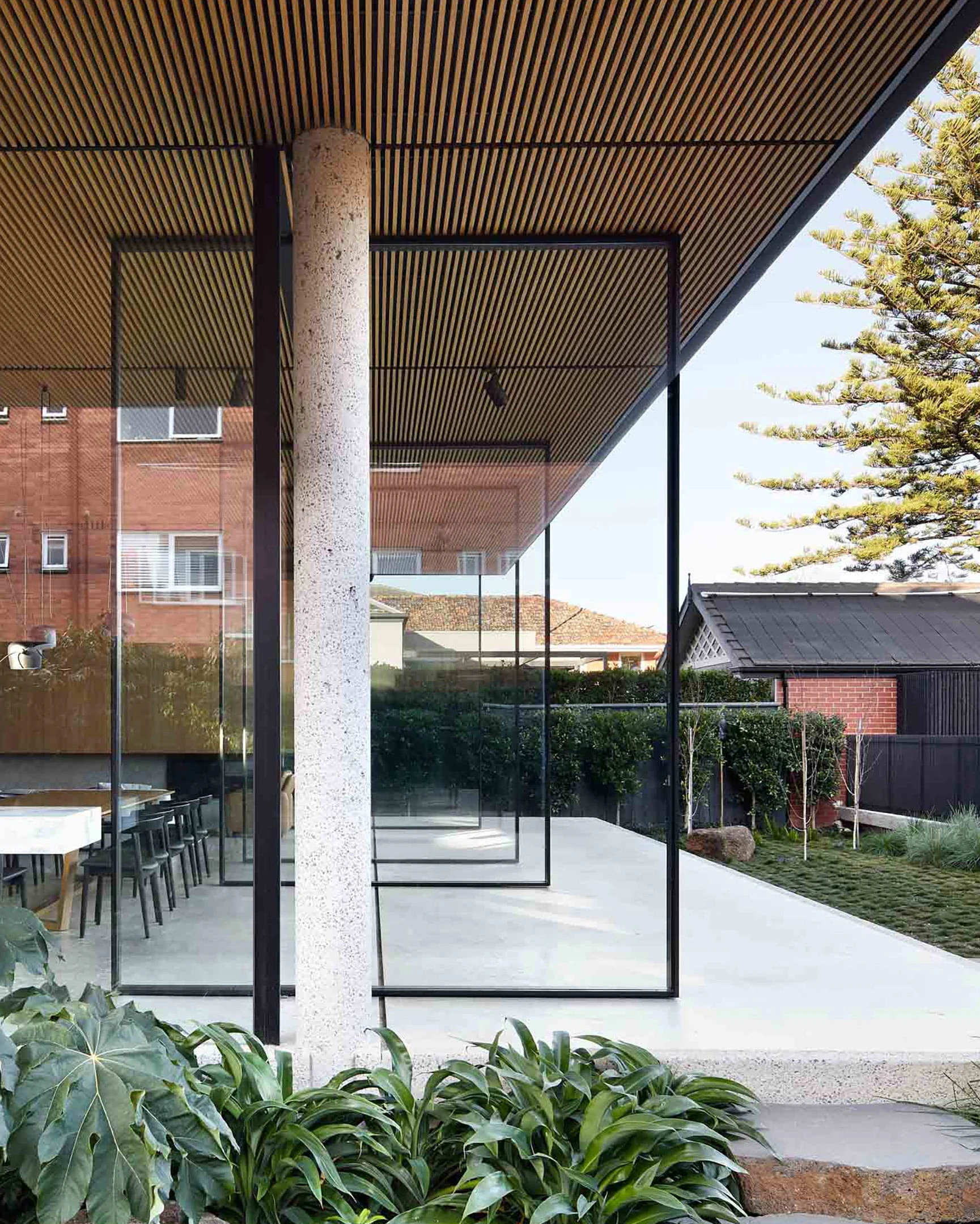

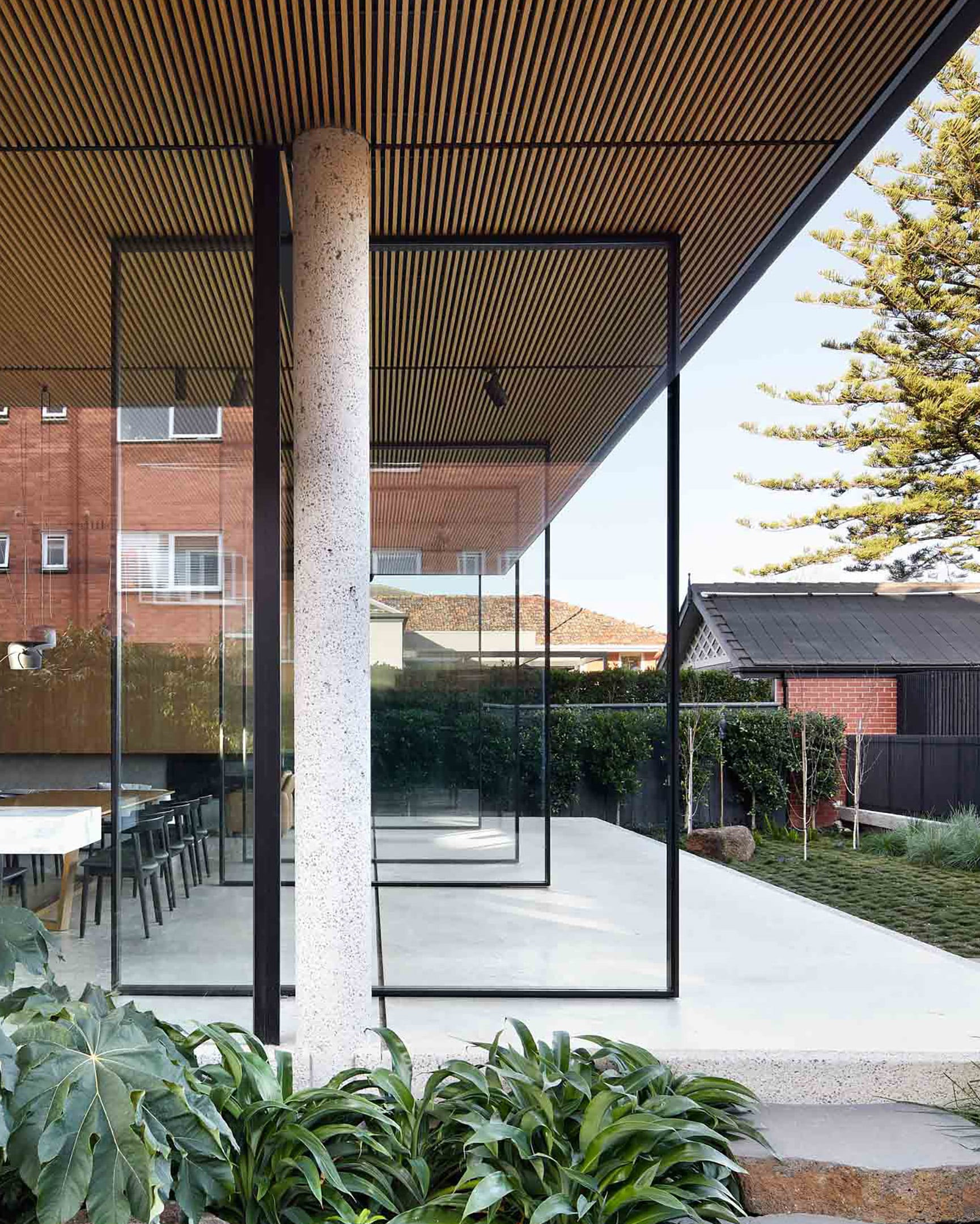

Brook Street, Three C Architects
Brook Street, Three C Architects
D House, Marston Architects
Riviera, Joe Adsett Architects
K House, MHN Design Union
Bay View House, Studio Johnston
D House, Marston Architects
Rose Bay, MHN Design Union
